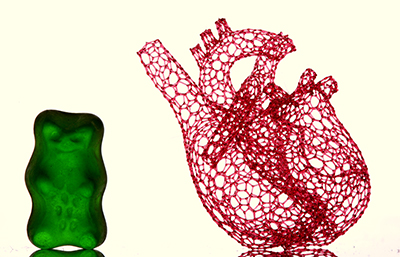

The delicate, red lacy 3D heart, posed next to a green gummy bear, is more than just a cute desk ornament or charming conversation piece.
Sure, the image of the duo, titled “Freeform 3D-Printed Heart Scaffold with Gummy Bear,” was a finalist in the 2016 Science Image Challenge hosted by the School of Chemical Sciences, but the 3D structure makes more than just a pretty picture.
“The principal application of these freeform printed objects is as sacrificial templates,” said Matthew Gelber, a Ph.D. candidate in bioengineering and a member of the Bioimaging Science and Technology Group. “The object can be cast in a hydrogel, then dissolved, leaving a 3D channel network, which can be designed to mimic physiological structures such as blood or lymphatic vessels and secretory ducts.”
The items are printed with the sugar substitute, Isomalt, which is water soluble and biocompatible.
“We use it because it dissolves in water, which is a very compatible solvent with many things, notably cells,” Gelber said. “And it prints very nicely.”
The sugary channels and the surrounding medium can be seeded with cells to create an accurate model of the breast ducts, for example, which is useful for in vitro studies of breast cancer. This technique also can be applied to make a variety of devices, from stents to monolithic microfluidic chips, which can perform chemistry at a very small scale. It also is scalable for applications ranging from millimeter-scale organs-on-chips to centimeter-scale vascularized tissues. Gelber works under the supervision of Rohit Bhargava, a full-time faculty member at the Beckman Institute. “This printer opens up a world of possibilities in fine control over structures in biomedical sciences,” said Bhargava, who heads the Chemical Imaging and Structures Laboratory and directs the campus cancer effort. The Bhargava Lab will use the printer to develop reactor systems to understand tumor-microenvironment interactions that drive cancer progression.
Research groups in Tennessee and Europe are applying freeform 3D printing to architecture although they’re using fiberglass and steel respectively, according to Gelber, who has followed the National Science Foundation-funded parallel research with curiosity. ”They want to make bridges and houses using freeform 3D printing,” he said. “Despite the difference in scale, many of the lessons learned from sugar printing can be applied to these large structures. In fact, the mechanical model used to predict whether a sugar structure will stand up or fall over is exactly the same model originally developed for structural frames.”
Gelber earned his bachelor’s in general engineering at Illinois and returned to campus to build the 3D bio-printer in Bhargava’s laboratory where he was an undergraduate researcher. The development of the printer was funded through a Beckman Institute Seed Grant, which is supported by the Beckman Foundation.
In freeform 3D printing, a moving nozzle is used to "draw" lines. This technique is different from layer-by-layer 3D printing and requires unique hardware, software, and materials.
Gelber built the printer, programmed the software, and is now working with Greg Hurst, a developer at Wolfram Research, to fine-tune the implementation of the algorithm that determines the order in which the lines are drawn.
“The hard part is, if you have something composed of thousands of 3D lines, what order do you draw that in?” Gelber said. “There’s a best way to do this. The hard part is actually behind the scenes, optimizing which operations to perform first and which to perform later.”
And patience is important in 3D printing. The 3D heart is 35 mm tall and took roughly 8 hours to print. The intricate Eiffel Tower, shown in his photograph, took 12 hours to print.
He uses macrophotography equipment in Beckman’s Visualization Lab (Vis Lab) to take photographs of the tiny models he creates. “Visualizing these accurately is somewhat difficult because the objects are very large relative to their smallest features. The high-quality camera and illumination available in the Vis Lab helped enormously with this.”
This research was supported by a Beckman Institute Seedling Grant with funds from the Beckman Foundation (“Engineering 3D Breast Tumors: From basic science to biomedical use,” Bhargava, Aluru, Ma, Kannanganattu).”
